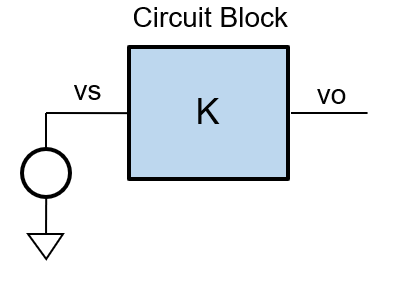

Basic Amplifier Block

What's the Ideal vs. Actual Output?

Back to EBA Series

IDEAL AMPLIFIER

Here's the Ideal Output equation with gain (K) and offset (Voffset).

You can think of this mathematically as the classic slope (m) and intercept (b) or shift of a line.

You might have seen other terms too!

Check out the equations of the Ideal and Actual blocks.

The errors are defined as

∆K - Gain Error
- change in Gain from ideal (K).
- also called Slope, Span Error
∆Voffset - Offset Error
- change in offset from ideal (0V)
- also called Intercept, Zero Error

Often amplifiers are designed with zero offset (Voffset = 0V) for 0V in, 0V out.
Now the Ideal and Actual (with errors) equations look like this:

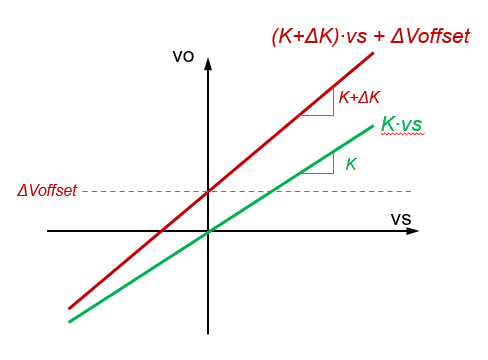

Check out the plots of both Ideal (GRN) and Actual (RED) output.

Play in the Excel file - modify values, see what happens!
Right Click on the filename, select "Save link as...".

Excel File: Circuit_Block_with_Errors_1.xlsx

Signal Gain

Start with no errors: ∆Voffset=0 and ∆K/K=0. The Ideal and Actual outputs (and plots) should be equal.
Add an Offset Error, ∆Voffset = 1.0. What happens to the Actual output plot?
Add a Gain Error, ∆K/K = 20%. How does it impact the Actual output plot?

Check out the analog design power tool - Sensitivity Analysis.
