# Max Slew Rate

## CIRCUIT

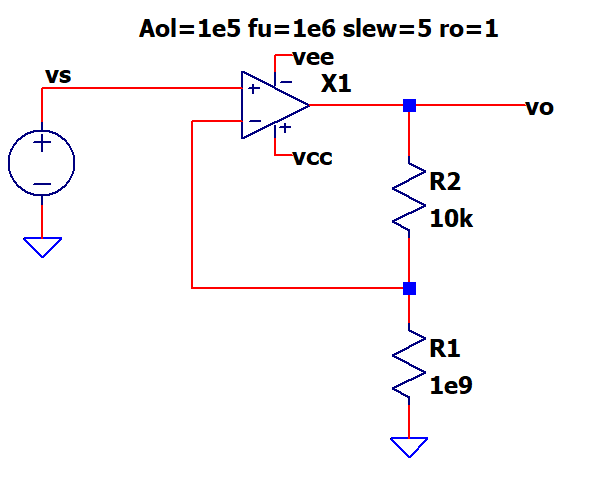

Schematic: Op_Amp_slew.asc
Op Amp Symbol: Opamp_2.asy
Op Amp Shematic: Opamp_2.asc
Right Click on filename, select "Save link as...",

Back to Design Series

## SPEC IT

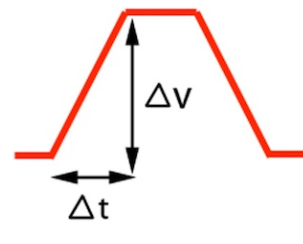

 Intro So, you've designed a signal bandwidth of 1MHz for your 200kHz sinewave - should be sufficient. But what happened? The output looks distorted! Why? You discover the op amp's output can only change so fast. How can you select a slew rate to pass the signal with it's shape preserved? Definition Max Slew Rate - the limit of how fast the ouput voltage can change versus time.SlewRate = dV / dt max Design Goal Pass a 10V 200kHz Sinewave Undistorted Design Spec Total Harmonic Distortion (THD) < 1%

## DESIGN IT

• Circuit Design
• Kcl = (R2+R1)/R1 = 1V/V
• Choose: R2=10k
• Select: R2=open
• Op Model Param
• Slew Rate - 5 V/us Max
• fu = 1MHz
• Aol=100000 fu=1e6 Slew=5 Ro=1
• Circuit Test
• Input: sinewave, 200kHz, Vstep = 1V and 10V
• THD (Fourier) analysis: .four 200kHz v(vo)
• Expected THD < 1%

## TEST IT

• Small signal test:  Vstep = 1V
• Run a Transient simulation. (.TRAN)
• Plot v(vo):  check for clean sinewave
• Read THD:  View > SPICE Error Log - read THD below Fourier Components
• Did it meet spec?
• If THD < 1%, then PASS, else FAIL
• Large signal test:  Vstep = 10V
• Rerun sim, visually check the waveform and the THD.
• What happened to the sinewave?
• You should see a triangle output as the 5V/us slew struggles to keep up with the sinewave.
• How high is the THD above 1%?
•  DESIGN ISSUE: The output THD fails to meet spec!

## SOLVE IT

• Incrementally increase Slew (by factors of 2).
• Rerun the SPICE sim.
• What's the minimum Slew needed for a clean sinewave and THD < 1%?

## THEORY REFRESH

• What is the slew rate max for a sine or exponential waveform?

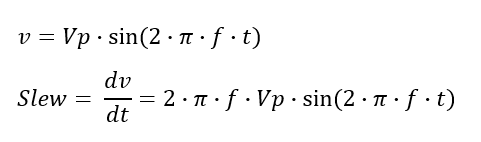

• For a Sinewave, the signal and derivative look like this

• Where is the max slew? At the zero crossing point, t=0

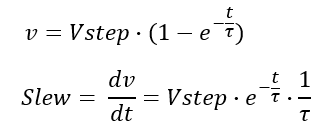

• For an Exponential (Low-Pass Filter output), the signal and derivative look like this.

• Notive that Tau is the time constant (or R*C product) of the Low-Pass filter.
• Where is the max slew? At the leading instant of the step, t=0.

• So what happened to our original design?
• Example: Vpeak=10V, f=200kHz
• Slew = 2*pi*Vpeak*f = 12.6 V/us
• Aha! The 5 V/us was doomed form the start.
• Let's solve it
• What Slew Rate is required for Vpeak=10V, f=200kHz?
• We already calculated the minimum 12.6 V/us above.
• Choose an op amp above this minimum.
• Retest the circuit with the new Slew Rate. Did your circuit meet spec?

Way to go! Select a real-world op amp that meets or exceeds your required Slew Max.
