Analog Design Toolkit
Excel Calculator Collection
Check out the entire Excel Calc
Collection.
WHY THIS TOOLKIT?
Over the years, I've collected essential EE calculations used regularly for design, test, debug and learning too! A real time saver - this collection grew steadily where I could quickly apply or modify formulas as needed.
OVERVIEW
- 25 Key Analog Circuits & Concepts
- Excel calculations ready for your project
- Handy reference of theory & equations
HANDS-ON DESIGN
- Copy sections into your own design sheet
- Apply, modify or expand as needed
INTERACTIVE LEARNING
- Change values > Predict outcome > Observe results
- Play - Experiment - Develop intuition!
BONUS - Key formulas created in MS Equation Editor
- Copy easily into your documentation
- Provides clearer visual understanding
Expand and build your own tool kit!

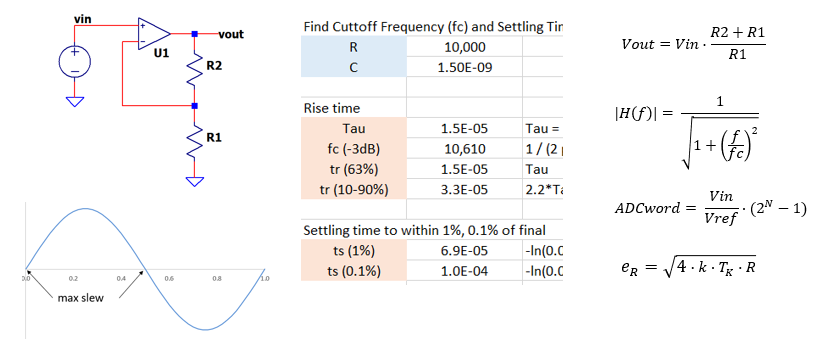

TOOLKIT OVERVIEW
- Op Amps - Inverting, Non-Inverting, Differential
- Gain-Bandwidth-Product, Max Slew-Rate
- Low-Pass Filter (vs time and frequency)
- Bits / Ratio / dB, Noise
- ADC, DAC
- Calibration
- Regulators - Linear, Buck
- Comparator, 555 Timer
- Transformers, Reactance
- Super Position, R-Divider
- Control, BJT Amp
EXCEL DESIGN CALCULATOR
Download the Excel design calculator file analog-design-toolkit-c.xlsx.
- Copy section - apply, modify, expand as needed!
- Create your own toolkit.
- Play in the sandbox, change values, predict what happens!
FEEDBACK, COMMENTS
What do you find helpful? Other comments or suggestions? Let me know!
